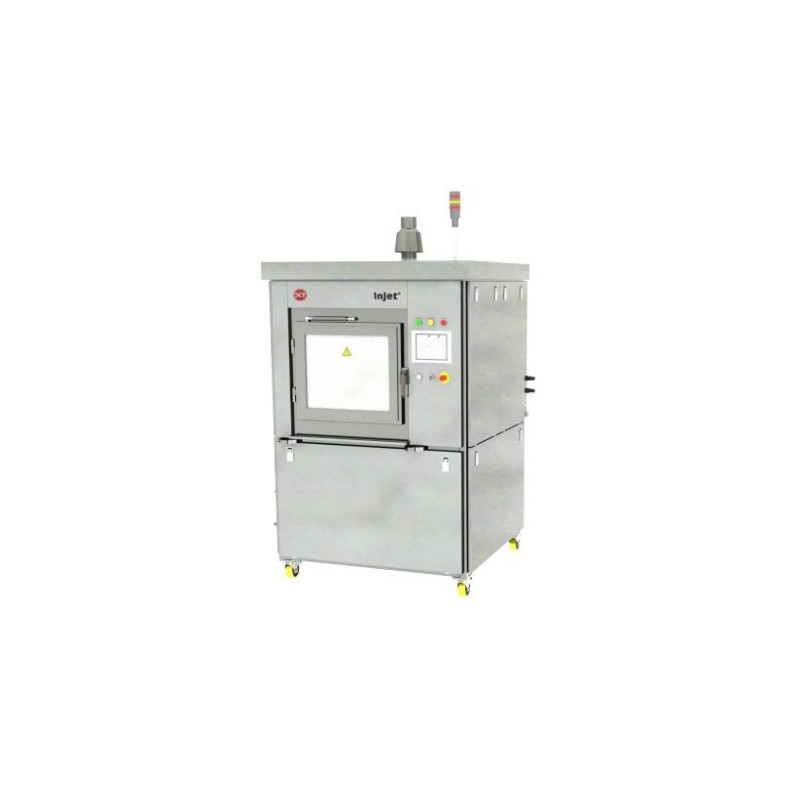

INJET cleaning machines are using high pressure spray-in-air technology for cleaning and rinsing process. They are built as one- or multichamber devices, due to requested application and needed cleaning capacity. This technology is very effective for wide range of parts to clean as a stencils, misprinted PCBs, squeegees, pumprints, soldered PCBs and also maintenance parts cleaning applications. Available as a vertical or horizontal spraying device, with large portfolio of options which can be add due to customer request, needed capacity or level of final cleanness.
Number of chambers: 1
Processes: cleaning / rinsing / drying
Device dimensions: 1250 x 1295 x 1868 mm
Max. dimension of cleaned part: 600 x 700 x 500 mm
Weight (without cleaning fluids): 700 kg
Internal mechanical filtration: cleaning: 20 - 100 µm, rinsing: 5 - 20 µm
Flow rate | pressure of cleaning fluid: 183l/min / 2 Bar
Cleaning fluid consumption (per 1 cycle): 0,2 - 0,4l
To be forwarded to the cleaning fluids
