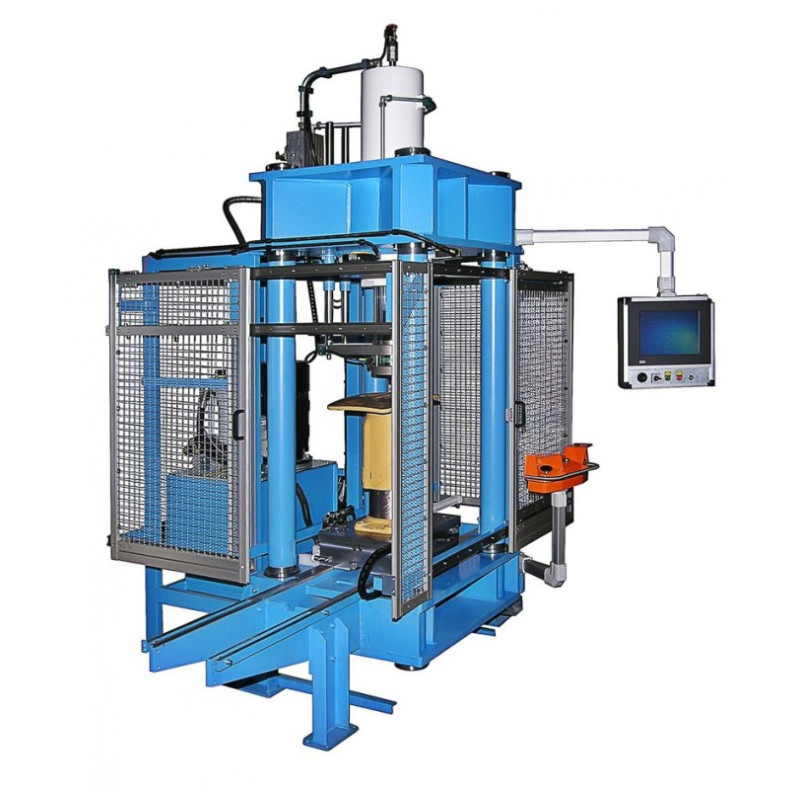

The test procedure is carried out in accordance with the manufacturer's instructions or the respective railway regulations, preferably in accordance with the European standard EN15551. The test consists in the recording of the path-force diagram during compression as well as the calculation of the energy absorption.
- Pressure force: 100 - 1000 kN
- Cylinder stroke: 550 mm
- Test speed: 7-14 mm / s
- Load cell: 100 - 1000 kN
- Installed engine power: 15 kW
- Opening width Z: 900 mm
- Opening width Y: 900 mm
- Opening width X: 500 mm
- Recording table: 400 x 600 mm
- Table height: about 700 mm
- Buffer supply: optionally from right or left
- Stretching table on wheels extendable
