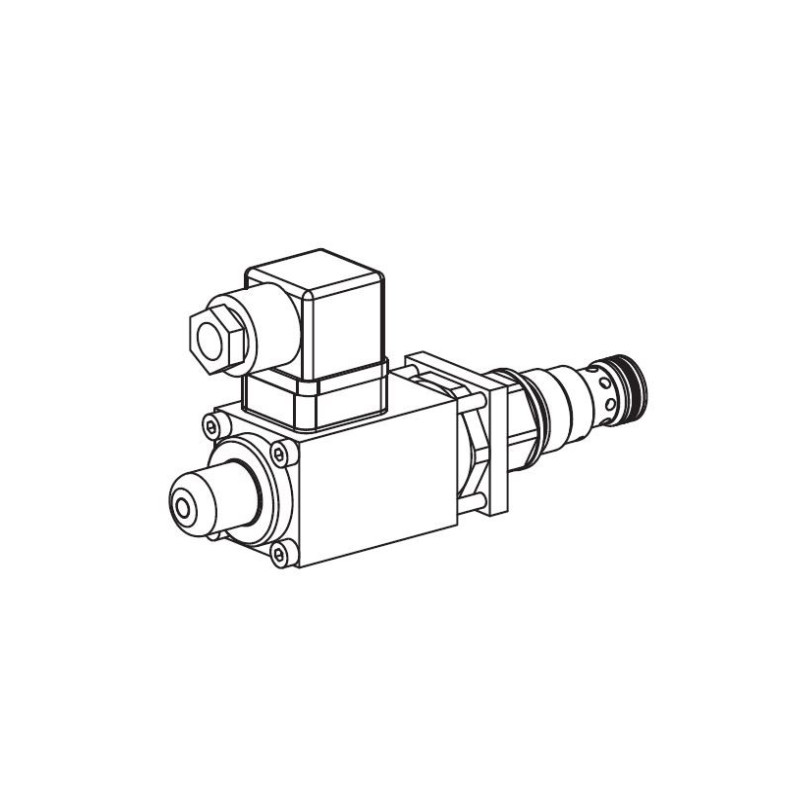

WANDFLUH BVIPM22 M22X1,5 RELIEF VALVE, PILOT OPERATED

Send enquiry for this product!

Pilot operated proportional pressure relief valve with inverse function. Thread M22x1,5 and cavity according to ISO 7789. As standard versions, 7 pressure levels are available. The differential area between the seat diameter and the poppet guide diameter determines the pressure level. Flat pressure volume flow characteristic. The regulation is effected through a Wandfluh proportional solenoid. The cartridge body and the solenoid made of steel are zinc coated and thus rust-protected. Wandfl uh proportional amplifiers are needed to control the proportional pressure relief valve (register 1.13).

Characteristics:

• Pilot operated
• Q_max: 100 l/min
• p_max: 400 bar
• p_{N max}: 350 bar
• Description: Pilot operated proportional pressure relief valve with inverse function
• Construction: Screw-in cartridge for cavity to ISO 7789
• Operations: Proportional solenoid with spring
• Mounting: Screw-in thread M22x1,5

Pdf:

• TDS WANDFLUH BVIPM22 M22x1 5 relief valve pilot operated eng.pdf
