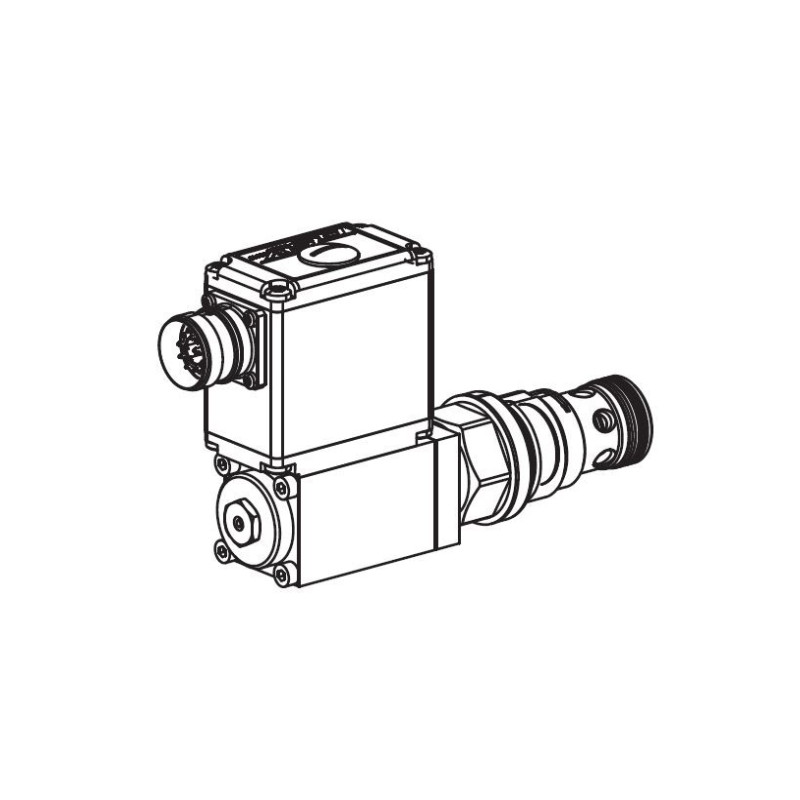

Pilot operated proportional pressure relief valve
with integrated electronics as a screw-in cartridge.
Thread M33x2 for cavity according to
ISO 7789. These plug & play valves are factory
set and adjusted. High valve-to-valve reproducibility.
Housing for electronics with protection
class IP67 for harsh environment. Three
standard pressure levels are available: 100,
200 and 315 bar. Adjustment by a Wandfluh
proportional solenoid (VDE standard 0580).
The cartridge and the solenoid made of steel
are zinc coated and therefore rustprotected.
Characteristics:
- Integrated electronics
- Direct operated
- Qmax: 230 l/min
- pmax: 400 bar
- pN max: 315 bar
- Description: Pilot operated proportional pressure relief
valve with integrated electronics
- Construction: Screw-in cartridge for cavity acc. to ISO 7789
- Operations: Proportional solenoid wet pin push type,
pressure tight
- Mounting: Screw-in thread M33x2
