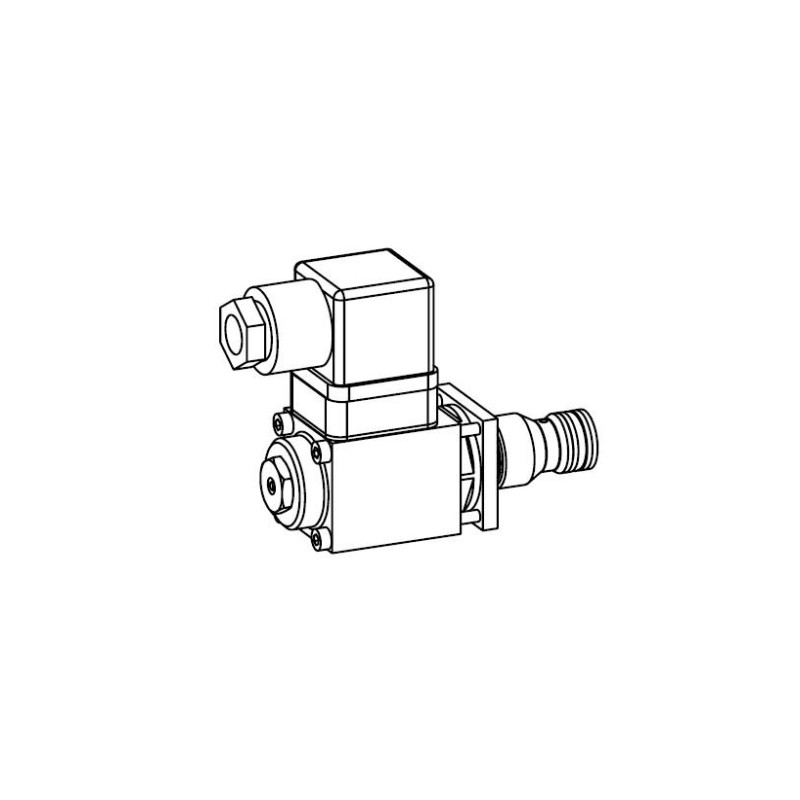

Direct operated proportional throttle valve.
Thread M18x1,5 and cavity in accordance with
ISO 7789. Spool options „normally closed“ and
„normally open“. Two flow ranges are available.
The volume flow is adjusted by a Wandfluh proportional
solenoid (VDE standard 0580).
Progressive increase and decrease of volume
flow and reduced hysteresis are characteristics
of this valve. The cartridge body is made
of steel. Its special surface coating protects
the outside against corrosion and reduces
friction of the control spool. The solenoid is
zinc coated.
Characteristics:
- Direct operated, not pressure compensated
- Throttle in one flow direction
- Qmax: 12 l/min
- QN max: 6,3 l/min
- pmax: 250 bar
- Description: Direct operated proportional throttle valve
- Construction: Screw-in cavity acc. to ISO 7789
- Operations: Proportional solenoid
- Mounting: Screw-in thread M18x1,5
