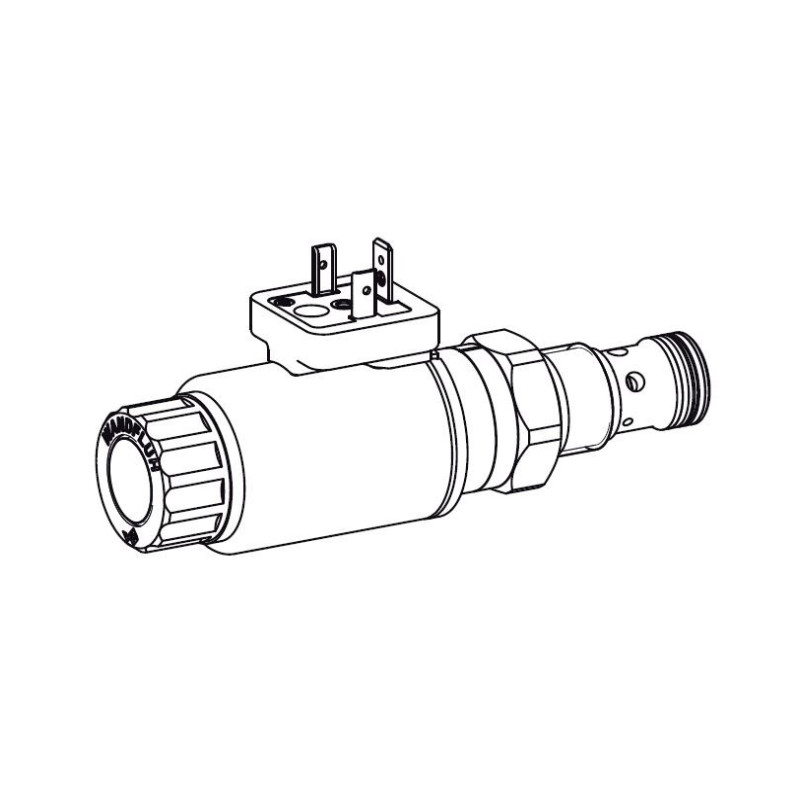

WANDFLUH DNPPM22 M22X1,5 THROTTLE VALVE

Send enquiry for this product!

Direct operated proportional throttle valve with thread M22x1,5 and cavity in accordance with ISO 7789. Three nominal flow rates are available. The volume flow is adjusted by a Wandfluh proportional solenoid (VDE standard 0580). Progressive increase and decrease of volume flow and reduced hysteresis are characteristics of this valve. The cartridge body is made of steel. Its special surface coating protects the outside against corrosion and reduces friction of the control spool. The solenoid coil is zinc- / nickel-coated.

Characteristics:

• Direct operated, not pressure compensated
• Throttle in one flow direction
• Q_max: 32 l/min
• Q_{N max}: 25 l/min
• p_max: 350 bar
• Description: Direct operated proportional throttle valve
• Construction: Screw-in cavity acc. to ISO 7789
• Operations: Proportional solenoid
• Mounting: Screw-in thread M22x1,5

Pdf:

• TDS WANDFLUH DNPPM22 M22x1 5 throttle valve eng.pdf
