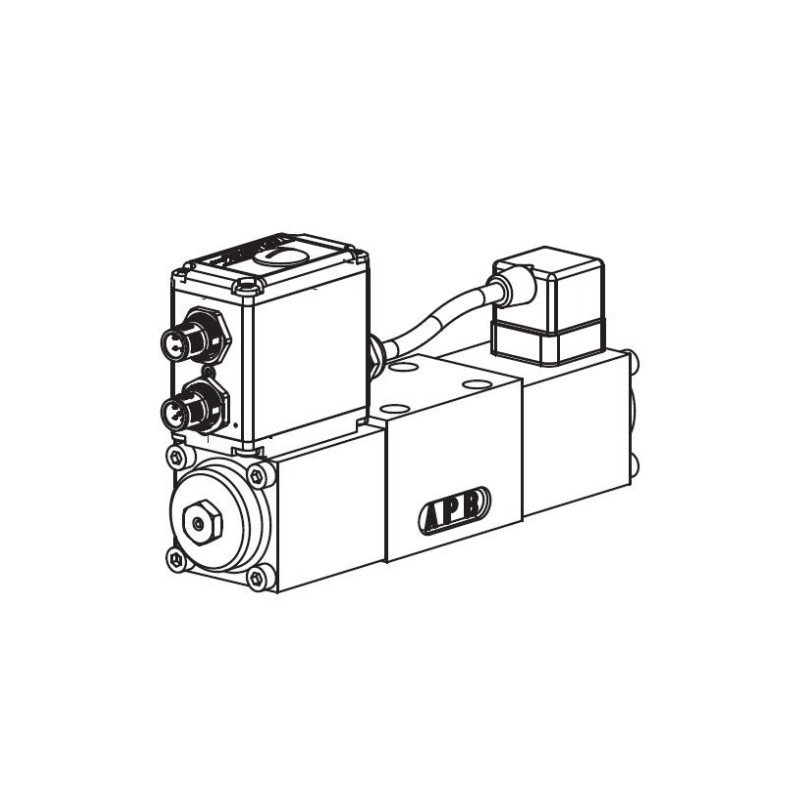

WANDFLUH WDVFA06 NG6 DIRECT OPERATED AND WITH INTEGRATED ELECTRONICS

Send enquiry for this product!

Direct operated proportional spool valve with integrated electronics in flange design NG6 acc. to ISO 4401-03 / 7790 with 4 ports. These plug & play valves are factory set and adjusted. High valve-to-valve reproducibility. Housing for electronics with protection class IP67 for harsh environment. The spool valve is designed acc. to the 5 chamber principle. The volume flow is adjusted by a Wandfluh proportional solenoid (VDE standard 0580). Low pressure drop due to the body design and spool profiling. The spool is made of hardened steel. The body made of high grade hydraulic casting is painted. The solenoids are zinc coated and the housing for the elctronics is made of aluminium.

Characteristics:

• Integrated amplifier or controller electronics
• Direct operated, not pressure compensated
• Q_max: 40 l/min
• Q_N: 32 l/min
• p_max: 350 bar
• Nominal size: NG6-Mini acc. to ISO 4401-03 / 7790
• Designation: 4/3-way proportional valve with integrated electronics
• Construction: Direct operated spool valve
• Mounting:Flange, 4 fixing holes for socket head cap screws M5x50

Pdf:

• TDS WANDFLUH WDVFA06 NG6 direct operated and with integrated electronics eng.pdf
