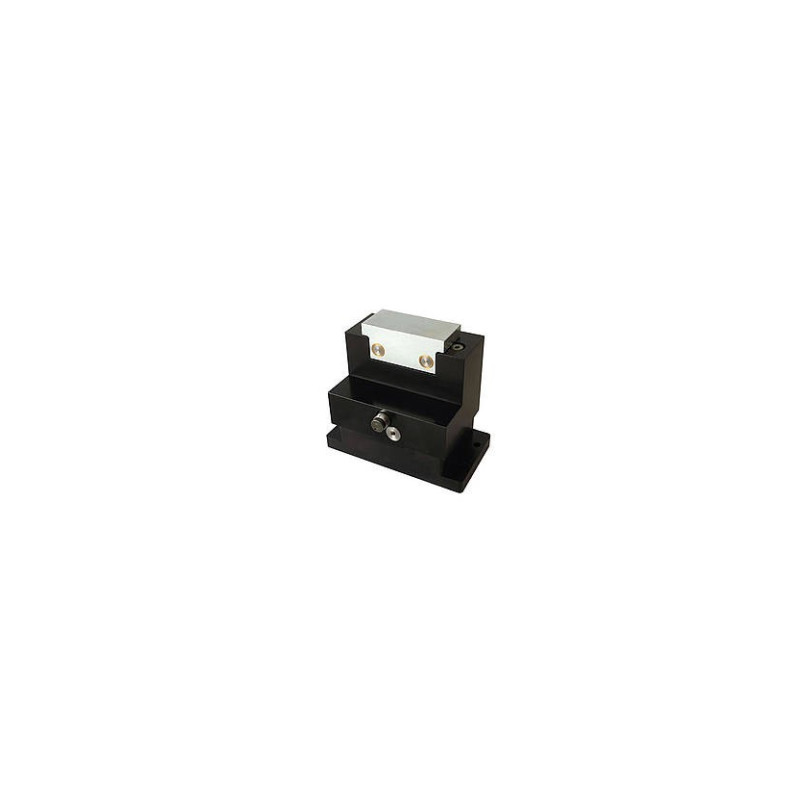

WEFORMA Pallet Stoppers WPS 600

EN AT DE CZ HU SI SK HR


WEFORMA PALLET STOPPERS WPS 600

WEFORMA Pallet Stoppers WPS 600

Send enquiry for this product!
Pallet stoppers fulfill two functions in the assembly of industrial and household goods on palette loop systems: They ensure smooth deceleration of individual or several palettes which have been parked in waiting positions at set line areas in the production process, and forward them individually for transporting to the next manufacturing position. There the palette stopper again ensures a smooth deceleration to avoid damage to the manufactured parts from hard impacts. At the same time it ensures the final position is reached precisely to guarantee correct machined assembly.

  • Slim design for rolling conveyor systems
  • Smooth braking through the adjustable hydraulic shock absorbers
  • Masses up to 1200 kg and speeds up to 30 m/min
  • Precise deceleration and seperation of pallets
  • Housing: aluminium, black anodized
  • Stop: hardened, nickel-plated
  • Single acting
  • Double acting (optional): pneumatic return
  • Proximity switch for detecting lower and upper position (optional)
  • Special version: pallet stopper for clean room
  • Cl. 5 (ISO), Cl. 100 (US), Cl. 3 (VDI)
  • RoHS - conform Directive 2002/95/EC
